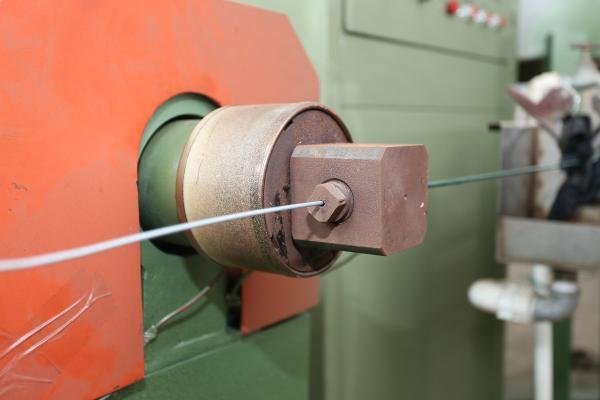

Plastic wrapping machine

Plastic wrapping machine

Plastic wrapping machine is a machine used for iron wire plastic wrapping in gabion mesh production line. Plastic coated wire is also called plastic coated wire, PVC plastic coated wire (referred to as: PVC wire, PE wire). This product uses galvanized wire as raw material. After deep processing, the plastic and galvanized wire are firmly combined together. It has the characteristics of aging resistance, corrosion resistance, crack resistance, etc. Its service life is several times that of cold and hot galvanized wire. The variety and color of this product can be customized according to user needs.

VIEW DETAIL
INQUIRY

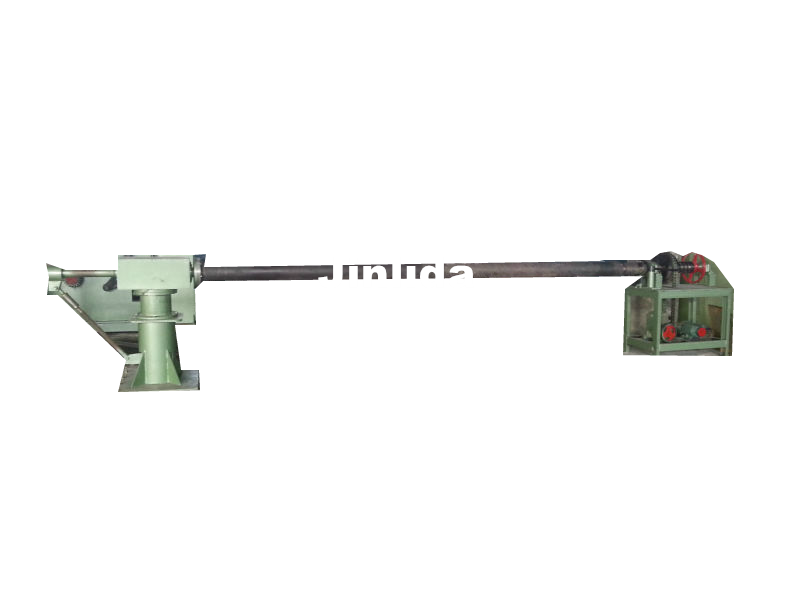

Harvester

Harvester

The screen winder is the equipment configured for the gabion mesh winder, and a set of standard gabion mesh winder includes: gabion mesh winder, warper, spring winder, and screen winder. Power: 1.5kw; Width: 4300mm; (prepared according to the width of the mesh) Speed: 225m/h (calculated according to mesh size).

VIEW DETAIL
INQUIRY

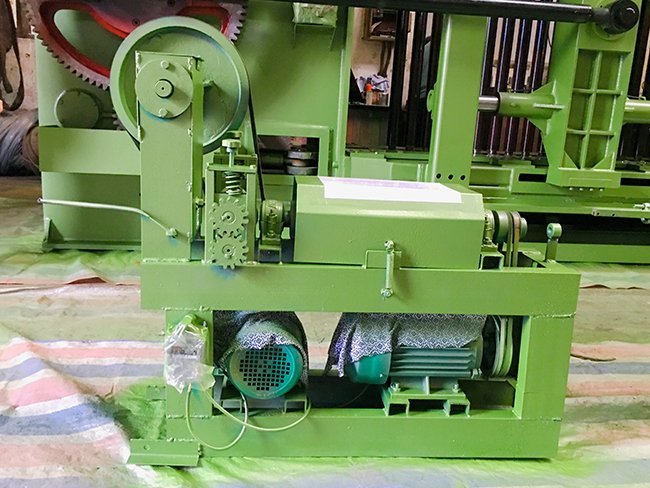

Wire straightening machine

Wire straightening machine

The wire straightening machine is a machine used to straighten and cut the edge wire in the gabion mesh production line, with accurate cutting, low loss and high efficiency. Wire diameter: 1.6-4.0mm; Cutting length: 0-10m; Modulation speed: 30m/min.

VIEW DETAIL
INQUIRY

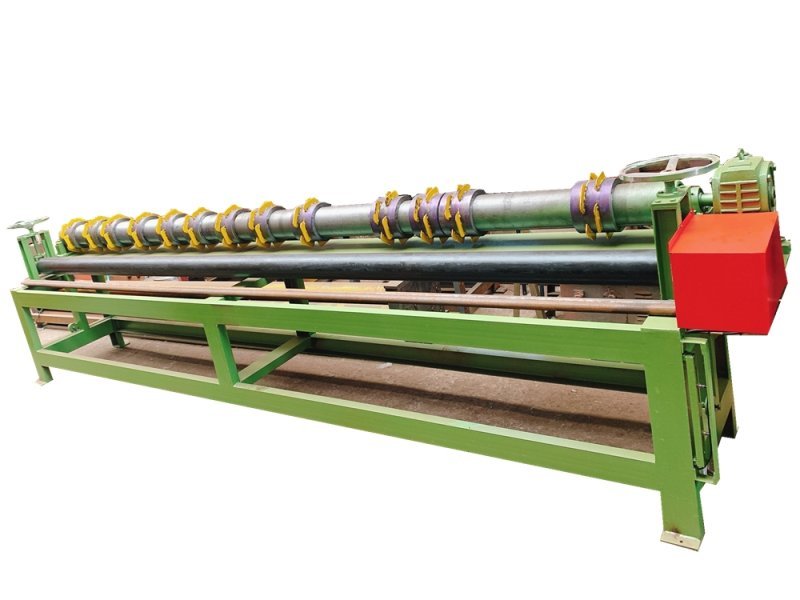

Warping machine

Warping machine

Warping machine is the equipment configured by gabion mesh machine for threading warp wire. A set of standard gabion mesh machine equipment includes gabion mesh machine, warping machine, spring winding machine and wire reeling machine. Warping machine roll: 4 or 5; Raw materials for roll production: φ 133 steel pipe.

VIEW DETAIL
INQUIRY

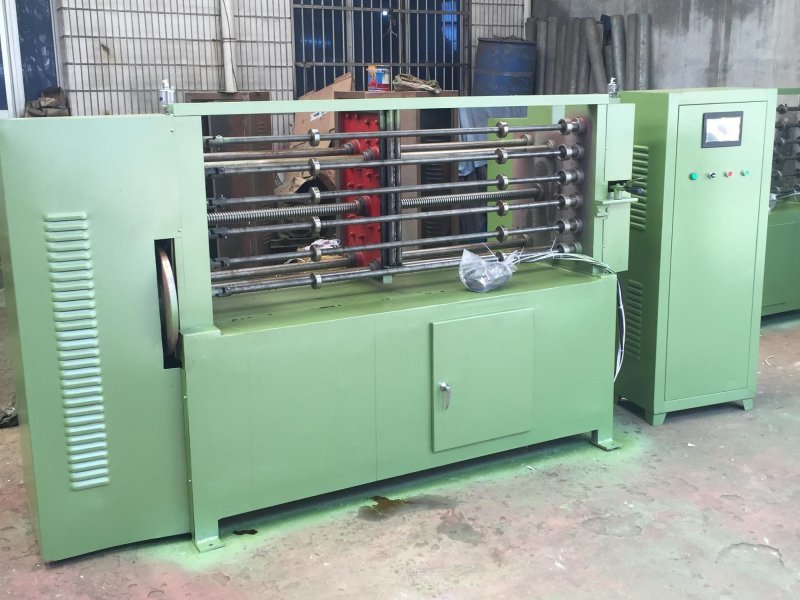

Spring coiler

Spring coiler

The spring winding machine is a machine equipped with gabion mesh machine for making spring wire, and the PLC control system. A set of standard gabion mesh machine includes: gabion mesh machine, warping machine, spring winding machine and wire drawing machine. Spring rod: 6 rods; Speed: 450r/min; Wire diameter: 1.6-4.0mm; Power: 3kw. Working principle: wind the iron wire into a multi-layer spring, increase the length of the iron wire, set the diameter of the iron wire and the number of spring layers. The speed of the servo motor drives the servo rod to rotate, and the servo rod drives the screw plate to adapt to the spring winding speed of different wire diameters and meet the working requirements of different wire diameters.

VIEW DETAIL
INQUIRY

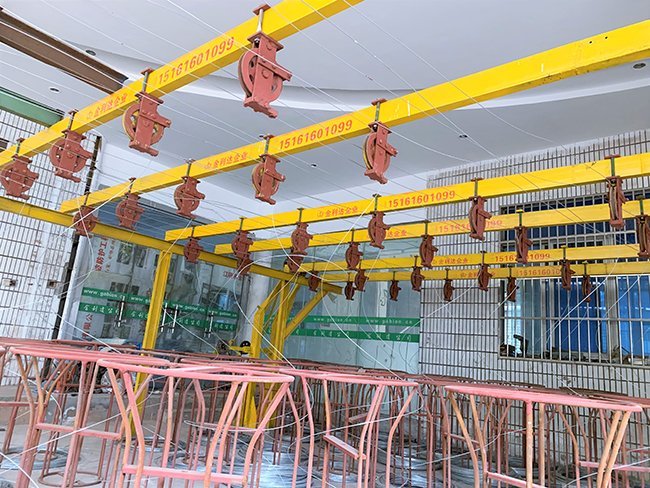

Setting out system

Setting out system

The setting out system is a set of system used for threading in the gabion mesh production line, which is threaded to the gabion mesh machine through the warper to improve the working efficiency. A set of paying off system includes: paying off reel, pulley and paying off rack.

VIEW DETAIL
INQUIRY

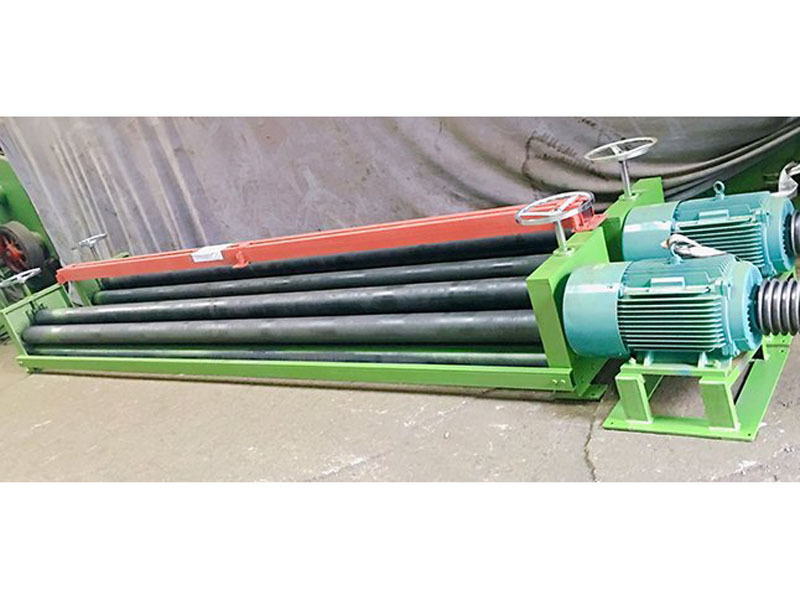

4.3m mesh flat screen conveyor gabion mesh assembly line

4.3m mesh flat screen conveyor gabion mesh assembly line

The flat screen machine is a kind of machine in the gabion mesh production line to make the mesh flat. It can feed the mesh into the screen cutter correctly according to the program operation, cut it off correctly at the set distance, and enter the conveyor to implement the crimping process. The servo motor drives the reduction motor with high precision. The gabion mesh after leveling by the flat screen machine is flat, beautiful and not easy to deform, which is convenient for subsequent cutting and curling. Width: 4300mm; Mesh size; 100*120mm； Servo motor power: 2.3kw; Wire diameter: 1.6-4.0mm; Roll material: φ 133 steel pipe.

VIEW DETAIL
INQUIRY

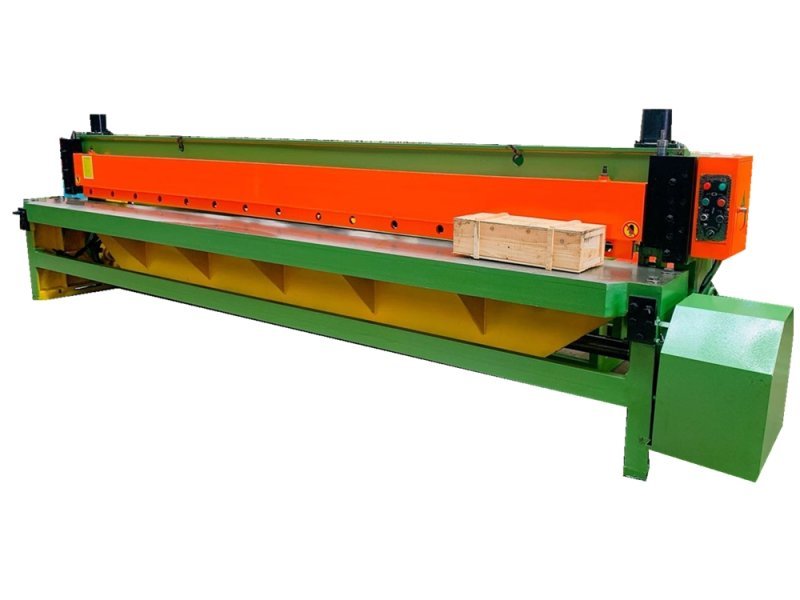

4m galvanized hexagonal wire mesh cutting machine mesh cutting machine gabion production line

4m galvanized hexagonal wire mesh cutting machine mesh cutting machine gabion production line

1、 Use of 4 * 4500 screen cutter This machine is suitable for wire shearing of thin plates in machinery, hardware, automobile, stainless steel decoration and other industries. The machine is suitable for the following working conditions: A. Tensile strength limit of shear plate ≤ 450N/mm ². B. The thickness of sheet metal is 0.5-4mm C. The temperature of sheet metal shall not be greater than 50 ℃ D. When the tensile strength of the sheared sheet is high, its shear thickness shall be reduced accordingly E. Intermittent shearing can be performed under full load.

VIEW DETAIL
INQUIRY

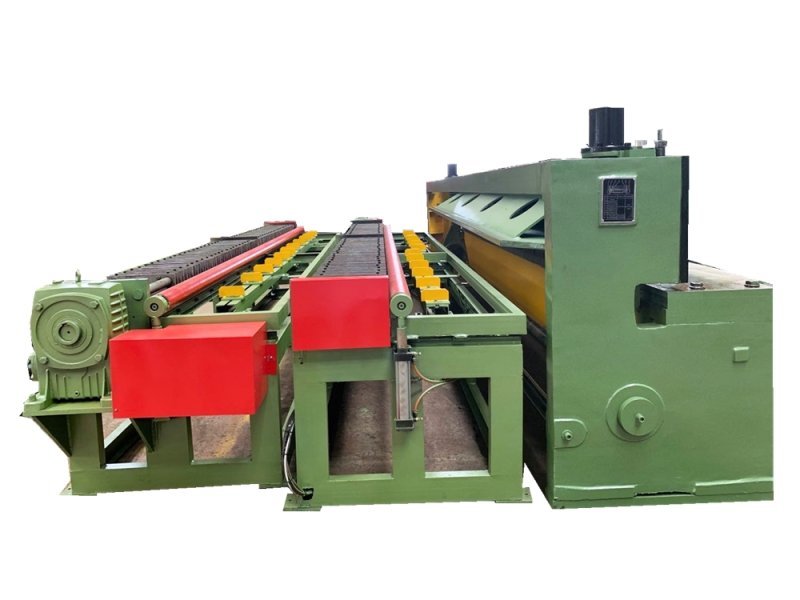

4m automatic edging machine for gabion mesh production line

4m automatic edging machine for gabion mesh production line

The crimping machine is a machine used for crimping in the gabion mesh production line, with PLC frequency conversion control system, automatic crimping and simple operation. Edge curling is a process in which the twisted part of hexagonal mesh is wound on the edge wire after being flat and cut. Our company has applied for a utility model patent (patent number: ZL201921713953.7) for the crimping gear assembly, which is exquisite in technology and perfect in crimping, and can meet the different needs of customers. Width: 4m (customizable); Power: 4.7kw; Mesh size: 100 * 120mm (customized according to mesh requirements); Wire diameter: 1.6-4.0mm. Operation requirements: try to ensure that the mesh is flat and the mesh specifications are the same.

VIEW DETAIL
INQUIRY
< 1 >
