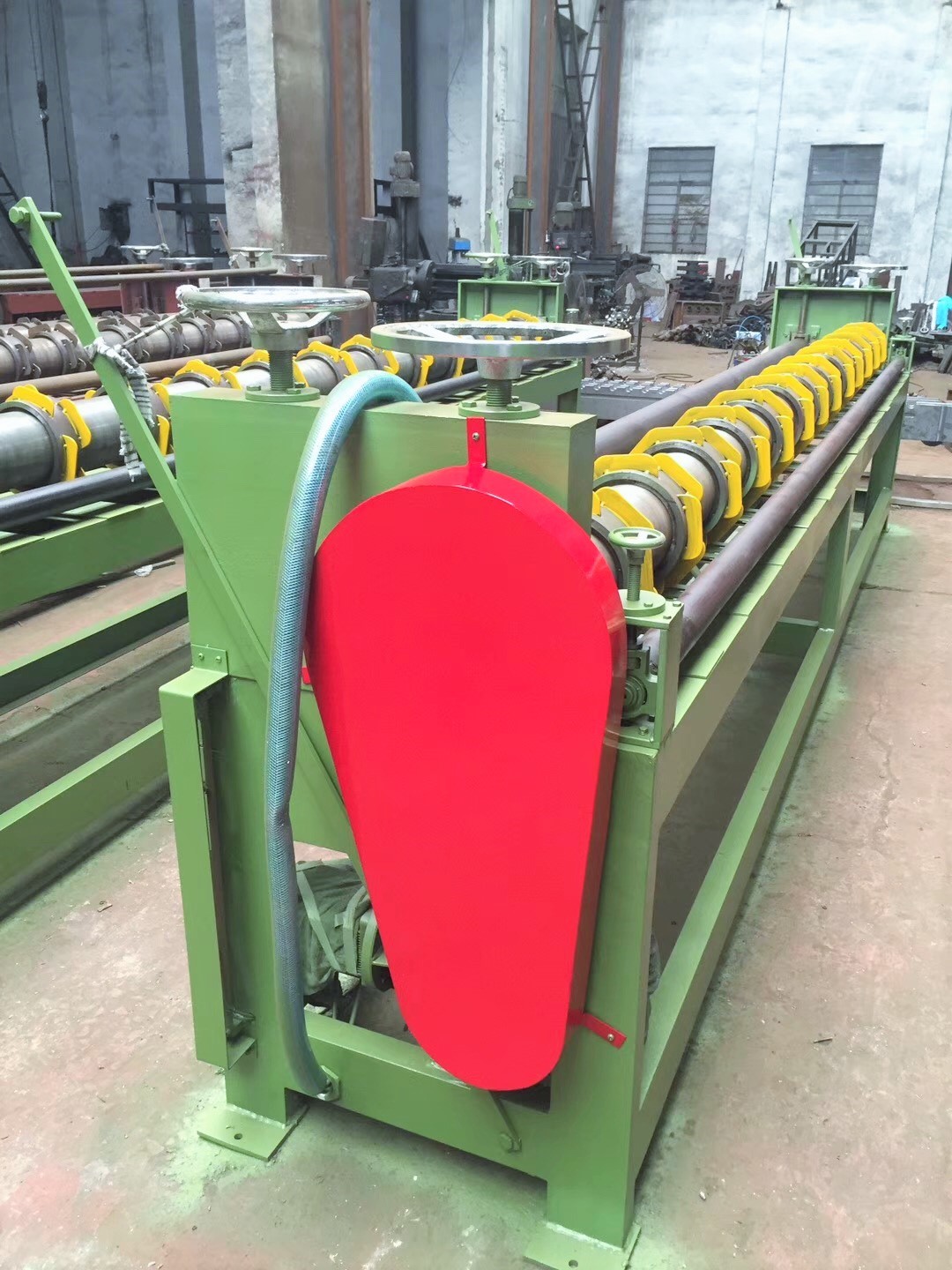

4.3m mesh flat screen conveyor gabion mesh assembly line

The flat screen machine is a kind of machine in the gabion mesh production line to make the mesh flat. It can feed the mesh into the screen cutter correctly according to the program operation, cut it off correctly at the set distance, and enter the conveyor to implement the crimping process. The servo motor drives the reduction motor with high precision. The gabion mesh after leveling by the flat screen machine is flat, beautiful and not easy to deform, which is convenient for subsequent cutting and curling. Width: 4300mm; Mesh size; 100*120mm； Servo motor power: 2.3kw; Wire diameter: 1.6-4.0mm; Roll material: φ 133 steel pipe.

Category:

Gabion production line

E-mail:

Phone:

PRODUCT INTRODUCTION

The flat screen machine is a kind of machine in the gabion mesh production line to make the mesh flat. It can feed the mesh into the screen cutter correctly according to the program operation, cut it off correctly at the set distance, and enter the conveyor to implement the crimping process.
The servo motor drives the reduction motor with high precision.
The gabion mesh after leveling by the flat screen machine is flat, beautiful and not easy to deform, which is convenient for subsequent cutting and curling.
Width: 4300mm;
Mesh size; 100*120mm；
Servo motor power: 2.3kw;
Wire diameter: 1.6-4.0mm;
Roll material: φ 133 steel pipe.

Key word:

Gabion Mesh Machine / Mesh Straightening Machine / Mesh Cutting Machine / Edge Winding Machine / Gabion Packing Machine / Wire Pay-off System / Wire Straightening and Cutting Machine / Gabion Production Line
